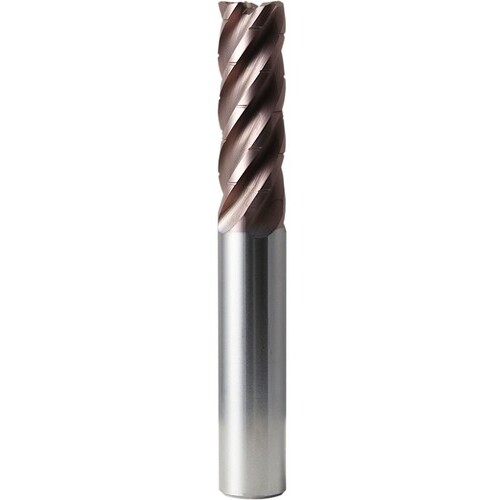

SGS 3/4" Dia, 5 Flute, Chip Breaker Corner Radius End Mill - 37656
SQ End Mill; 3/4″ Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 0.06″ RE ; 5 FL ; Carbide ; Ti-NAMITE-M ; Series Z5C
| Cutting Diameter (DC) | 3/4″ | Flute Count (NOF) | 5 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Decimal Equivalent | 0.75″ |
| Overall Length (OAL) | 5″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Series/List # | Z5C |
| Coating | Ti-NAMITE-M |
Product Features
| Country of Origin | USA |
