.031 HD ML SQ 8X RCH 5FL

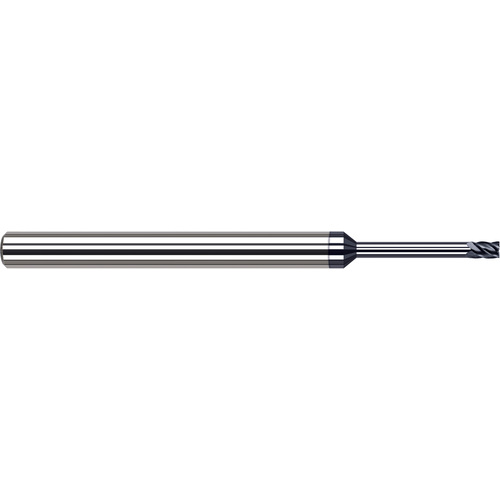

SQ End Mill; 1/32″ Dia. × 3/64″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; 1/4″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/32″ | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.03″ |
| Depth of Cut Maximum (APMX) | 3/64″ | Length Group | 8D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.031″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 1/4″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
