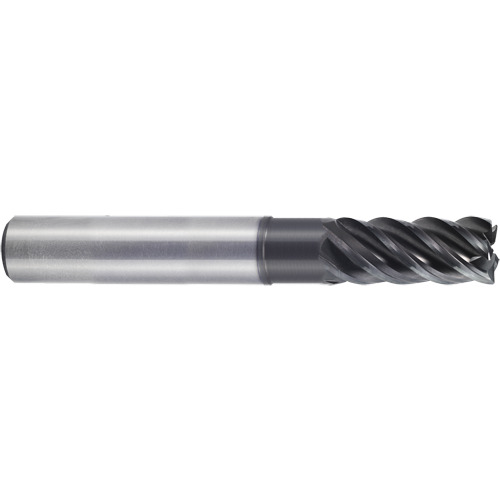

Square End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 5″ OAL ; 5 FL ; Carbide ; Y-Coating ; Series UGMH07
SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 5″ OAL ; 0.06″ RE ; 5 FL ; 3-1/8″ LBS ; Carbide ; AlCrN ; Series UGMH07
| Cutting Diameter (DC) | 3/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 3-1/8″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 5″ | Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | UGMH07 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.5
Package Width
0.75
Package Height
0.75
Package Weight
0.999
