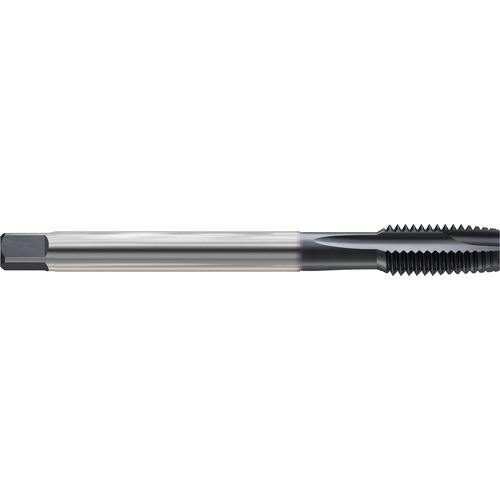

Spiral Point Tap; M12 × 1.25 mm ; 100.08 mm OAL ; 3 FL ; HSS-PM ; X-Coating ; D5 ; Series TRK04

Spiral Point Tap; M12 × 1.25 mm ; 100.08 mm OAL ; 3 FL ; HSS-PM ; AlCrN ; D5 ; Series TRK04

Item # 8994569

Brand: YG-1 Cutting Tools

MFG #: TRK04525GS

Legacy Part #: YG41TRK04525GS

Trade Name: Prime Tap

Quantity Available

Thread Standard

Standard

DIN/ANSI

Thread Size

M12 × 1.25 mm

Connection Diameter Machine Side (DCONMS)

9.32 mm

Thread Diameter Size (TDZ)

M12

Thread Cutting Part Length (THL)

24.99 mm

Thread Pitch (TP)

1.25 mm

Tapping Prehole Diameter (Pre-hole)

10.9 mm

Thread Tolerance Class (TCTR)

End Shape

Plug

Usable Length (LU)

42.09 mm

Shank Type

Square

Overall Length (OAL)

100.08 mm

Length Group

3xD

Chamfer

‎4P-5P

Square Size

6.99 mm

Coating

AlCrN

Measurement Type

Metric

Flute Count (NOF)

Series/List #

TRK04

Cutting Edge Material

HSS-PM

Product Features

Remarks

High and Reliable performance on various Ductile Materials.
Optimized Edge Preparation: Consistent performance and process stability to prevent chipping. Optimized Flute Geometry for Excellent Chip Flow: Increased tool life as a result of optimum combination of material, geometry, and coating which gives unrestricted chip flow.
HSS-PM(Powder Metallurgy) Premium Taps: Powdered Metal technology for tough-Chipping resistance cutting edge for long tool life and reliable thread finish.
YG-1's High Performance Coating for high heat and wear resistance.
Special design to prevent oversized threads and reduce gauging problems. High Performance on various Ductile Materials. NOTE: Taps should be only used strictly with a Tap adapter or Tap collet. Do not use a drill collet or you will have issues.

Country of Origin

S.Korea

Shipping Info

Package Length

4.625

Package Width

0.75

Package Height

0.625

Package Weight

0.012
