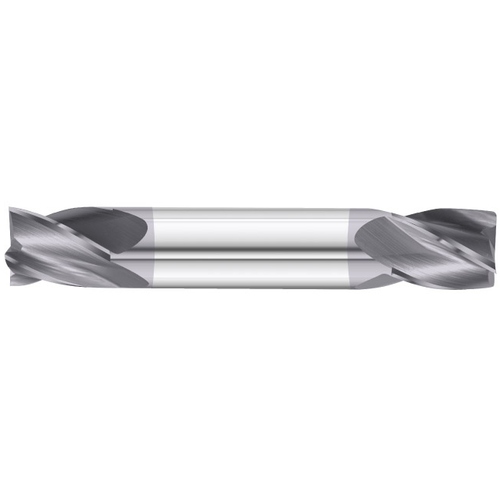

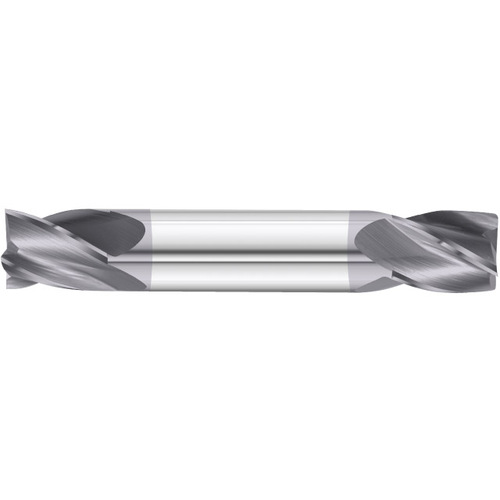

Square End Mill; 3/16″ Dia. × 3/8″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 3200

‹ ›

Square End Mill; 3/16″ Dia. × 3/8″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 3200

SQ End Mill; 3/16″ Dia. × 3/8″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 3200

Item # FUL 36011

Brand: Fullerton Tool

MFG #: 36011

Legacy Part #: FT8536011

Trade Name: 3200 4-Flute General Purpose End Mill

Quantity Available

Cutting Diameter (DC)

3/16″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

3/16″

End Shape

Square

Depth of Cut Maximum (APMX)

3/8″

Tool Type

Center Cut|Double-End

Overall Length (OAL)

2″

Length Group

Short|Stub

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

AlTiN

Decimal Equivalent

0.1875″

Flute Count (NOF)

Series/List #

3200

Flute Helix Angle (FHA)

30 Degrees

Product Features

Remarks

‎

Square, Ball and Radius End Options

4 Flutes

30° Helix

Single and Double End Designs

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Available Uncoated and TiN, TiCN and TiAlN Coatings

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items furnished with Weldon Flats

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.029
