1/2X1/2X7/8X2_1/8X4_5F

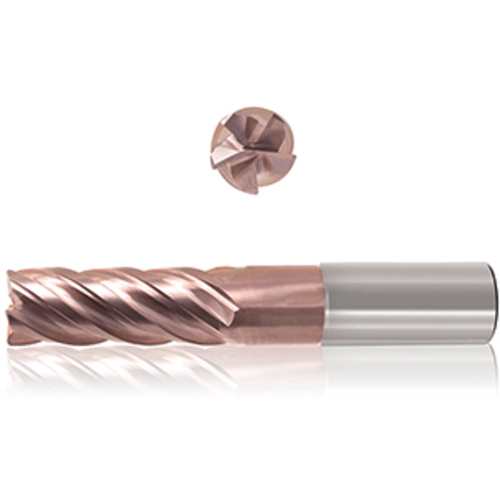

SQ End Mill; 1/2″ Dia. × 7/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 5 FL ; 2-1/8″ LBS ; Carbide ; VARIANTIC ; Series 577

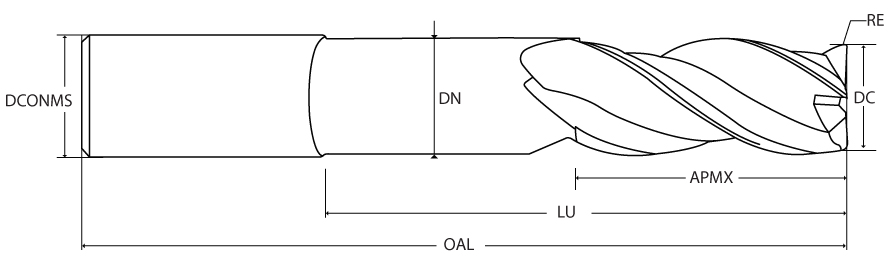

| Cutting Diameter (DC) | 1/2″ | Grade | H5003 Vulcan |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Neck Diameter (DN) | 0.48″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | Standard - Necked |
| Coating | VARIANTIC | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Necked |
| End Shape | Square | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 2-1/8″ | Measurement Type | Inch |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Series/List # | 577 |
| Application | | Finish | HEM | Semi Finish | | Shank Size (SS) | 1/2″ |
Product Features
| Family Description | 5 Flute Endmill for Finishing, Variable Pitch, Reduced Neck,Center Cutting, 38° Helix, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.385
