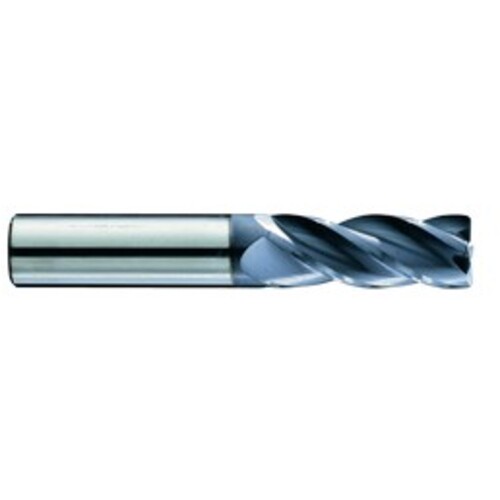

SSIST40156-000C11 END
SQ End Mill; 5/32″ Dia. × 5/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 4 FL ; 5/16″ LBS ; Carbide
| Cutting Diameter (DC) | 5/32″ | Usable Length (LU) | 5/16″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 5/16″ | Application | Finishing |
| Overall Length (OAL) | 2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1562″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.99
