SSIST40500-030C11 END

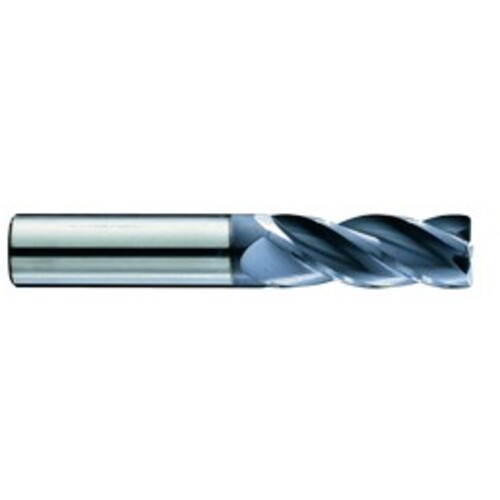

SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.03″ RE ; 4 FL ; 5/8″ LBS ; Carbide
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 3″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Radius | Single / Double End | Single End |
| Usable Length (LU) | 5/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.99
