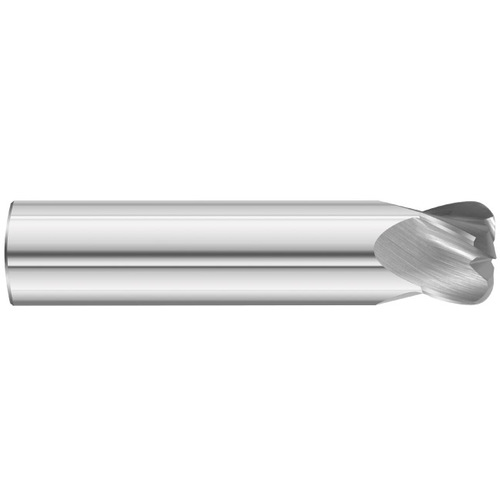

Corner Radius End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 3200

‹ ›

Corner Radius End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 3200

Item # FUL 31919

Brand: Fullerton Tool

MFG #: 31919

Legacy Part #: FT8531919

Trade Name: 3200 4-Flute General Purpose End Mill

Quantity Available

Cutting Diameter (DC)

1/4″

End Shape

Corner Radius

Connection Diameter Machine Side (DCONMS)

1/4″

Usable Length (LU)

1/2″

Depth of Cut Maximum (APMX)

1/2″

Corner Radius (RE)

0.02″

Overall Length (OAL)

2″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Short|Stub

Coating

Uncoated

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.25″

Flute Helix Angle (FHA)

30 Degrees

Series/List #

3200

Shank Type

Round

Product Features

Remarks

‎

Square, Ball and Radius End Options

4 Flutes

30° Helix

Single and Double End Designs

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Available Uncoated and TiN, TiCN and TiAlN Coatings

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items furnished with Weldon Flats

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.051
