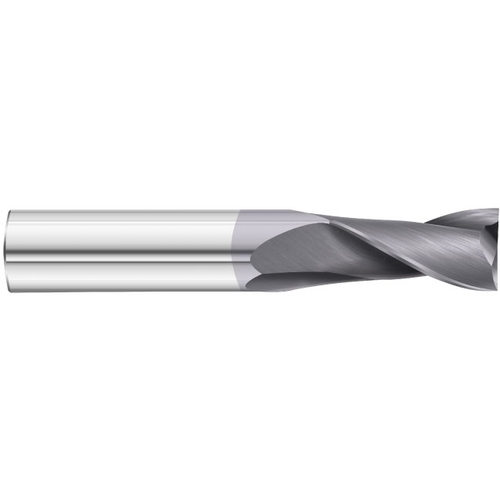

Square End Mill; 31/64″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 3215

‹ ›

Square End Mill; 31/64″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 3215

Item # FUL 30672

Brand: Fullerton Tool

MFG #: 30672

Legacy Part #: FT8530672

Trade Name: 3215 2-Flute General Purpose End Mill

Quantity Available

Cutting Diameter (DC)

31/64″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/2″

End Shape

Square

Depth of Cut Maximum (APMX)

1″

Usable Length (LU)

1″

Overall Length (OAL)

3″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Regular

Coating

AlTiN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.484375″

Flute Helix Angle (FHA)

30 Degrees

Series/List #

3215

Product Features

Remarks

‎

Square, Ball and Radius End Options

2 Flutes

30° Helix

Single and Double End Designs

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Available Uncoated and TiN, TiCN and TiAlN Coatings

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.265
