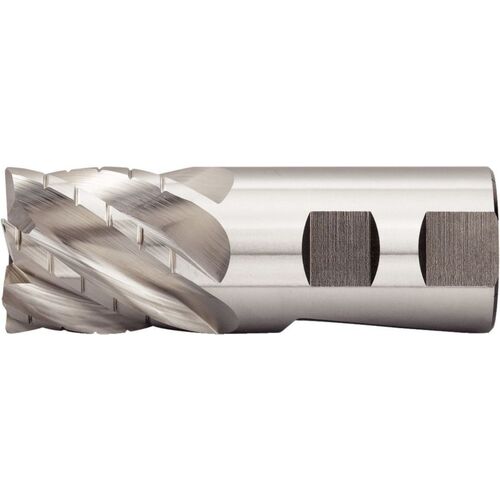

623E38009CW CARBIDE END MILL
Corner Radius End Mill; 1-1/2″ Dia. × 3″ LOC × 1-1/4″ Shank Dia. × 5-1/2″ OAL ; 6 FL ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 1-1/2″ | Shank Type | Whistle Notch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 5-1/2″ | Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | HSSCo | Tool Type | Center Cut|Single-End |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 38 Degrees|CW | Decimal Equivalent | 1.5″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.002
