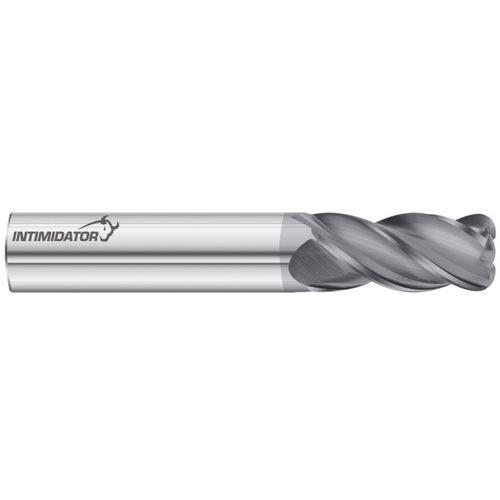

Corner Radius End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3000

‹ ›

Corner Radius End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3000

Corner Radius End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Series 3000

Item # FUL 34419

Brand: Fullerton Tool

MFG #: 34419

Legacy Part #: FT8534419

Trade Name: 3000 Intimidator End Mill

Quantity Available

Cutting Diameter (DC)

1/2″

Shank Type

Weldon

Connection Diameter Machine Side (DCONMS)

1/2″

End Shape

Corner Radius

Depth of Cut Maximum (APMX)

1″

Corner Radius (RE)

0.09″

Overall Length (OAL)

3″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Regular

Coating

FC18

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.5″

Flute Helix Angle (FHA)

38 Degrees

Series/List #

3000

Product Features

Remarks

‎

Square, Chamfer and Radius End Options

Chatter-Free Machining

4 Flutes

Unequally Spaced Index

Specially Designed Relief

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items furnished with Weldon Flats

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.275
