1/2X1/2X1-1/2 2F CO TiN

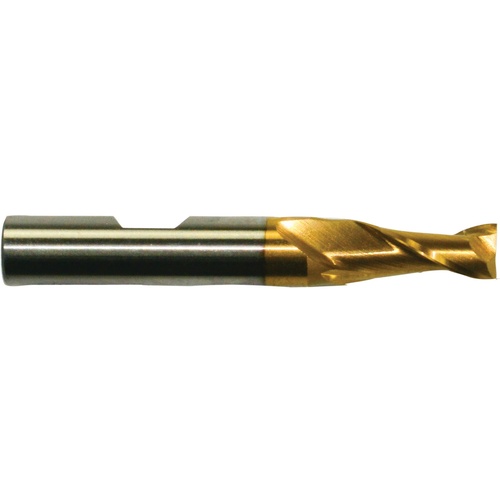

Square End Mill; 1/2″ Dia. × 1-1/2″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; HSSCo8 ; TiN ; Series HGC-2-TN
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Cast Iron | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | General purpose |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 3-1/2″ | Tool Type | End Mill |
| Cutting Edge Material | HSSCo8 | Style | Finisher |
| Coating | TiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | HGC-2-TN |
| Shank Type | Round | Shank Size (SS) | 1/2″ |
| End Shape | Square | Shank Length (LS) | 2″ |
| Usable Length (LU) | 1-1/2″ | Corner Radius (RE) / Chamfer Width (CHW) | None |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.143
