1/2X1/2X2X4 3F AL-ZRN

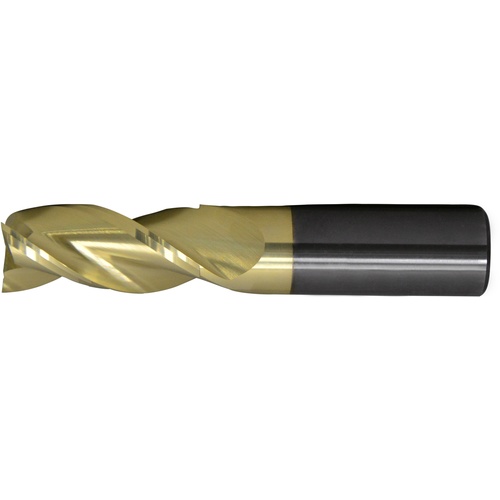

Square End Mill; 1/2″ Dia. × 2″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; ZrN ; Series CEM-AM3-ZN
| Cutting Diameter (DC) | 1/2″ | Application | Heavy duty for aluminum materials. |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0″ |
| Depth of Cut Maximum (APMX) | 2″ | Tool Type | End Mill |
| Overall Length (OAL) | 4″ | Flute Type | Long |
| Cutting Edge Material | Carbide | Style | Finisher |
| Coating | ZrN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees | Series/List # | CEM-AM3-ZN |
| Shank Type | Round | Shank Size (SS) | 1/2″ |
| End Shape | Square | Shank Length (LS) | 2″ |
| Usable Length (LU) | 2″ | Corner Radius (RE) / Chamfer Width (CHW) | None |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.172
