VAR FIN D=.75 AP=1.5 Z=7 R=0,0

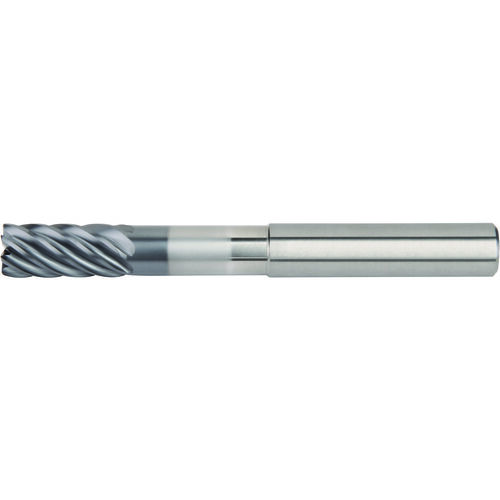

Corner Radius End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 5-1/2″ OAL ; 7 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 3/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Usable Length (LU) | 3-1/8″ |
| Overall Length (OAL) | 5-1/2″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.76 mm |
| Coating | AlTiN | Tool Type | Single-End|Non-Center Cutting |
| Flute Count (NOF) | 7 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 38 Degrees|CW | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.1243
