VAR FIN D=.75 AP=3.75 Z=7 R=0.

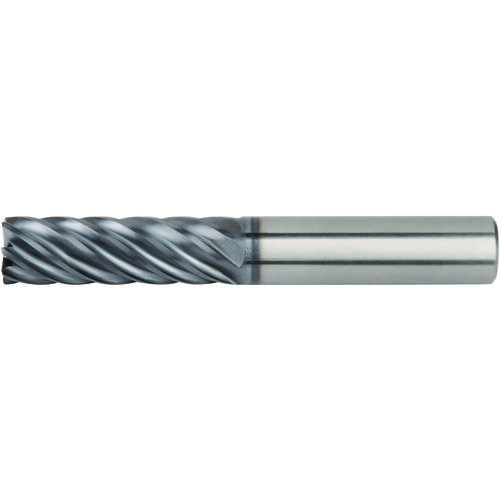

SQ End Mill; 3/4″ Dia. × 3-3/4″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 0.76 mm RE ; 0.03″ RE ; 7 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 3/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3-3/4″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 6″ | Corner Radius (RE) | 0.76 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 7 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Flute Helix Angle (FHA) | 38 Degrees|CW |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.036
