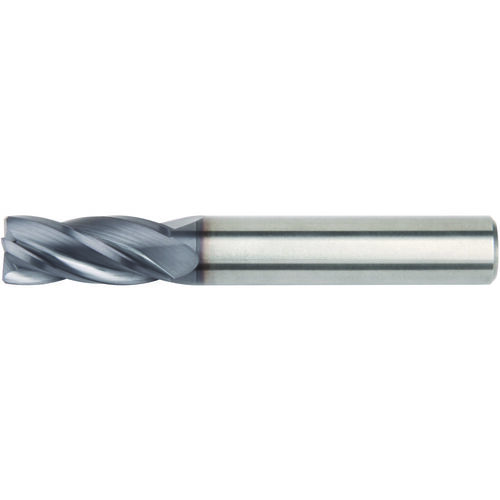

GP SC END MILL 4FL 14X14X26X83
Square End Mill; 14 mm Dia. × 26 mm LOC × 14 mm Shank Dia. × 83 mm OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 14 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 14 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 26 mm | Usable Length (LU) | 26 mm |
| Overall Length (OAL) | 83 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.5 mm |
| Coating | AlTiN | Decimal Equivalent | 0.5512″ |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.3 mm |
| Flute Helix Angle (FHA) | 30 Degrees|CW |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.3571
