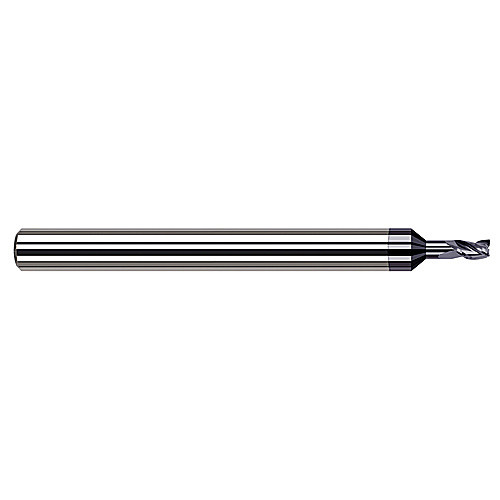

739993-C3 4FL .093″X.139″
SQ End Mill; 3/32″ Dia. × 0.139″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; 0.279″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/32″ | Usable Length (LU) | 0.279″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.0915″ |
| Depth of Cut Maximum (APMX) | 0.139″ | Neck Length (LN) | 0.14″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 1.5D |
| Coating | AlTiN | Decimal Equivalent | 0.0938″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
