3/4X1-1/2 4FL VGX .020

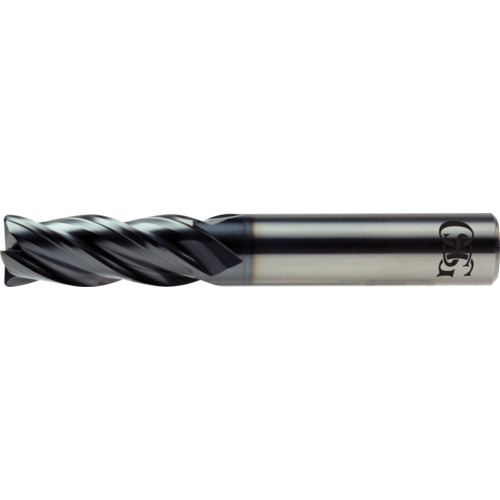

Corner Radius End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series VG436
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Chamfer Width (CHW) | 0.02″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Style | Corner Chamfer |
| Coating | AlTiN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Weldon | Series/List # | VG436 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.755
