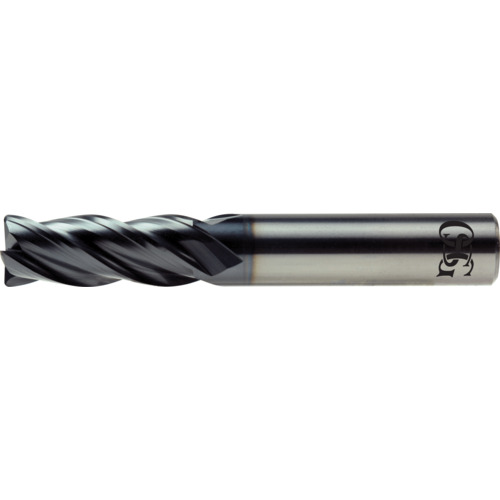

3/8″ Dia. × 3/8″ Shank × 7/8″ DOC × 4″ OAL, Carbide, TiAlN, 2 Flute, Weldon, Chamfer, Solid End Mill
SQ End Mill; 3/8″ Dia. × 7/8″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 2 FL ; 7/8″ LBS ; Carbide ; AlTiN ; Series VG436
| Cutting Diameter (DC) | 3/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 7/8″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Corner Chamfer Width (CHW) | 0.02″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Style | Corner Chamfer |
| Coating | AlTiN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Shank Type | Weldon | Series/List # | VG436 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.14
