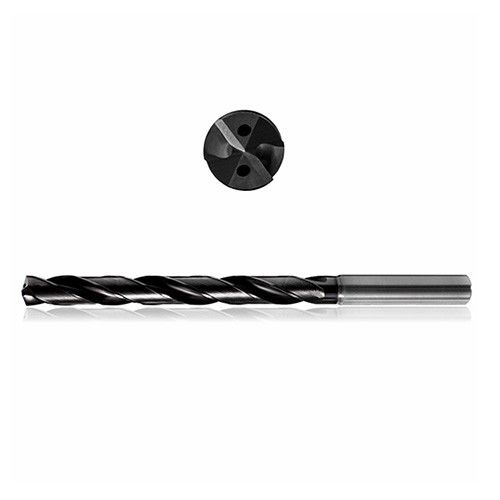

DXC0312900T9
SC Drill; 12.9 mm Dia. × 14 mm Shank Dia. × 107 mm OAL × 60 mm LCF ; 140 Degrees ; 3xD ; TiAICN
| Drill Bit Size / Cutting Diameter (DC) | 12.9 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.9 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide Drill |
| Coating | TiAICN | Grade | H5009 Varianta Supral |
| Applicable Material | | Stainless Steel | Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Drilling | | Usable Length (LU) | 41 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Length Chip Flute (LCF) | 60 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 107 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Feature | DOUBLE-MARGIN DRILL |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Country of Origin | Usa |
