.0050″X.1230″2FL AlTiN

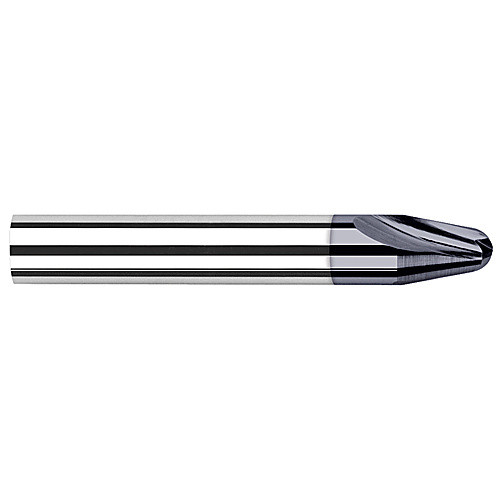

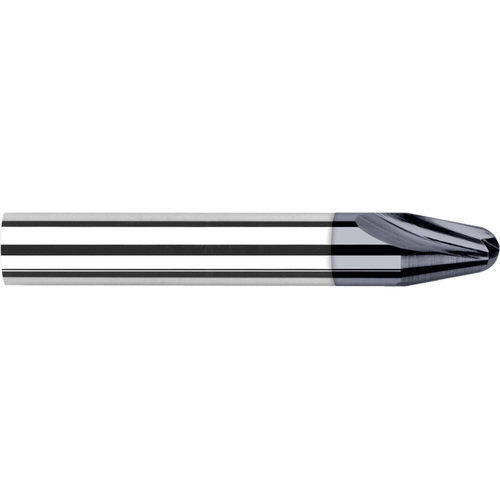

Tapered End Mill; 0.01″ Dia. × 0.123″ LOC × 2-1/2″ OAL × 1/4″ Shank Dia. ; 2 FL ; 90 Degrees ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.01″ | Point Angle (SIG) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.123″ | Coating | AlTiN |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.005″ | End Shape | Ball Nose |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Tool Type | Specialty Profiles |
| Body Half Taper Angle (BHTA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.069
