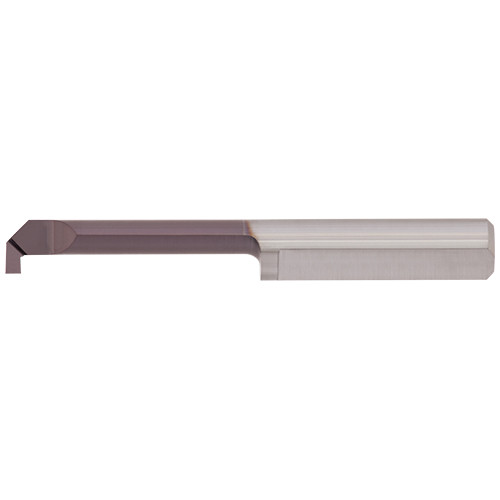

TFEGR07140200-D068 AC22S
Boring Bar; 0.276″ Shank Dia. × 0.268″ Min Bore Dia. × 0.098″ Max Bore Depth × 1.181″ LF × 1.181″ OAL ; 0.004″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Front End Width (a) | 0.24″ |
| Minimum Bore Diameter (DMIN) | 0.268″ | Corner Radius (RE) | 0.004″ |
| Functional Length (LF) | 1.181″ | Cutting Depth Maximum (CDX) | 0.098″ |
| Head Length (LH) | 0.551″ | Functional Width (WF) | 0.106″ |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | AC22S | Measurement Type | Inch |
| Application | | Internal Profiling | | Overall Length (OAL) | 1.181″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Width (CW) | 0.079″ |
Product Features
| Family Description | MicroCut Right Hand Solid Bars for Internal Grooving | Country of Origin | Israel |
