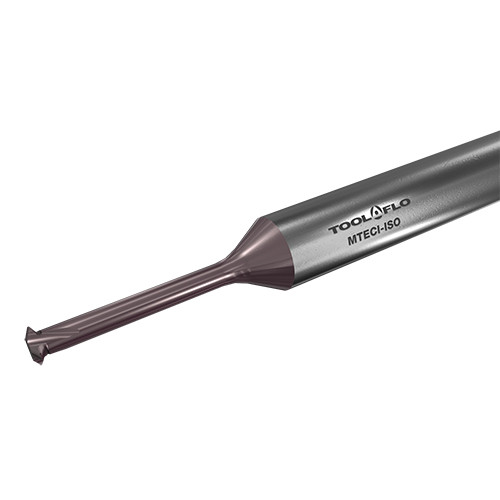

MTECI 03024C10 0.5ISO AC222
| Thread Size | M3X0.5; M3.5X0.5, M4X0.5 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 0.5 mm | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 10.6 mm |
| Cutting Diameter (DC) | 2.37 mm | Measurement Type | Metric |
| Overall Length (OAL) | 39 mm | Grade | AC222 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Hard Materials | |
Product Features
| Family Description | Small Diameter Single Point Internal ISO Profile Solid Carbide Thread Mills | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
