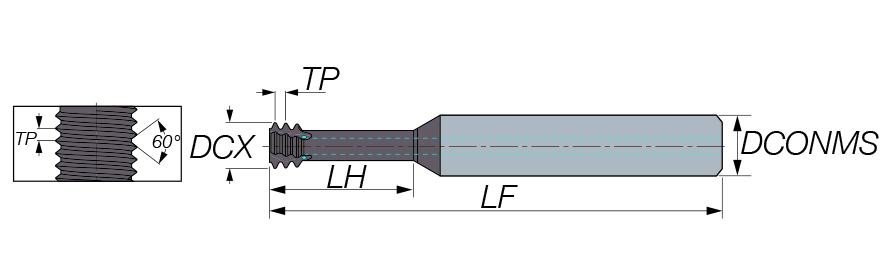

MTECS 08061C20 18UNJ AC22
| Thread Size | 5/16″ UNJC; 9/16″ UNJF | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.411 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 18 | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 20 mm |
| Cutting Diameter (DC) | 6.15 mm | Measurement Type | Metric |
| Overall Length (OAL) | 64 mm | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 3.62 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | NJ60 |
Product Features

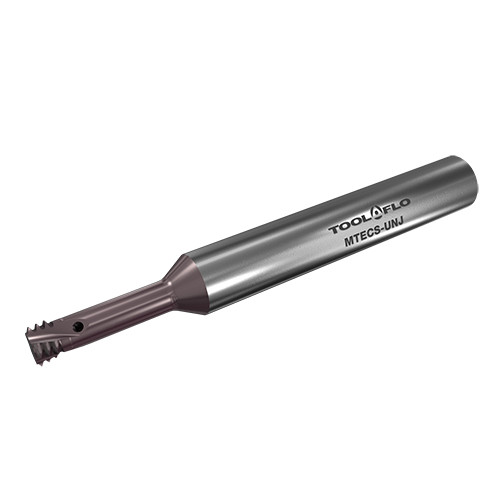

| Family Description | Small Diameter Solid Carbide Internal UNJ Profile Threading Endmills with Short Contact Area | Country of Origin | Israel |
