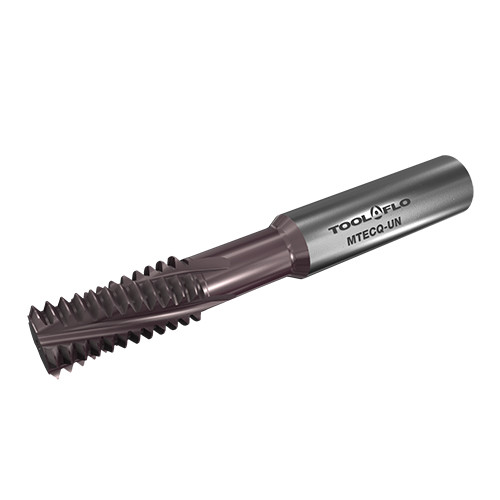

MTECQ 1212D4212UN AC22
| Thread Size | >=16 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 12 | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 12 mm | Usable Length (LU) | 42.3 mm |
| Overall Length (OAL) | 84 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | AC22 |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 25.4 mm |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Solid Carbide Endmills with Internal Coolant Holes and a Reduced Diameter Neck, for Deep Internal UN Profile Threading | Country of Origin | Israel |
