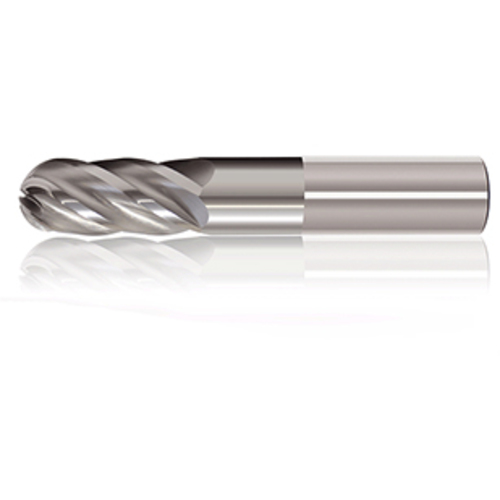

5/8X5/8X1X2X4 5FL RH BALL
BN End Mill; 5/8″ Dia. × 1″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; AITiCrN ; Series 558
| Cutting Diameter (DC) | 5/8″ | Neck Diameter (DN) | 0.6″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Number of Teeth | 5 |
| Depth of Cut Maximum (APMX) | 1″ | Grade | H5008 Exxtral Silver |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | AITiCrN | Shank Standard | h6 |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2″ | Series/List # | 558 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.009 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Corner Radius (RE) | 5/16″ |
Product Features
| Family Description | 5 Flute Ballnose for Finishing. variable Pitch, Reduced NeckCenter cutting, 35° helix angle, Traditional Milling For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
