3/8X3/8X3/4X2 1/8X4_6FL

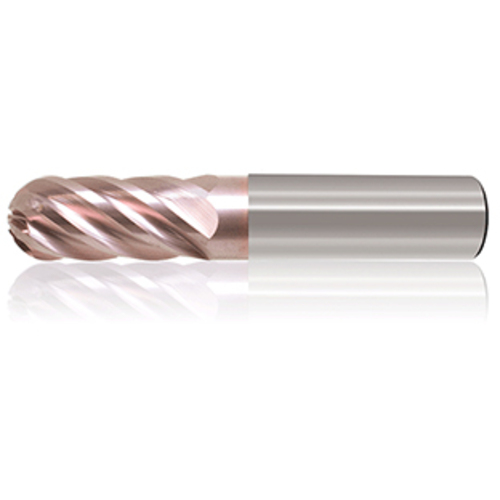

BN End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 6 FL ; Carbide ; VARIANTIC ; Series 677

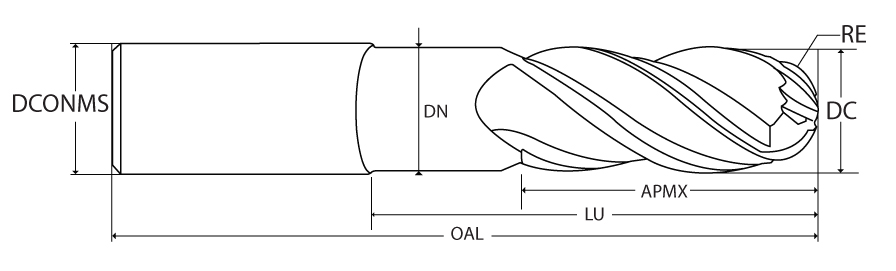

| Cutting Diameter (DC) | 3/8″ | Neck Diameter (DN) | 0.36″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Number of Teeth | 6 |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | H5003 Vulcan |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.375″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/8″ | Series/List # | 677 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0019 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Minimum Feed per Tooth (fz(min)) | 0.0005 ″/tooth |
| Corner Radius (RE) | 3/16″ |
Product Features
| Family Description | 6 Flute Ballnose for Finishing, variable Pitch, Reduced NeckCenter cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
