1/2X1/2X5/8X4X2 1/8X2 RH

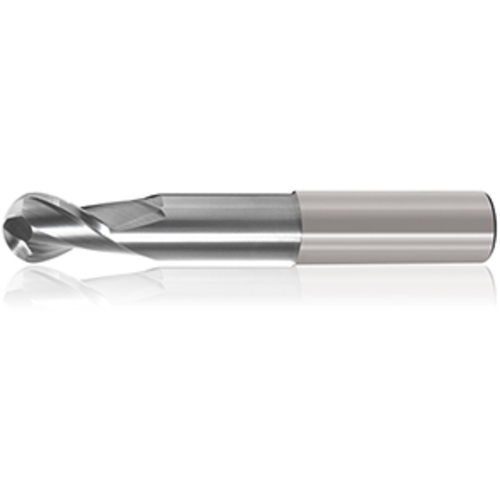

BN End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; Ta-C ; Series H235

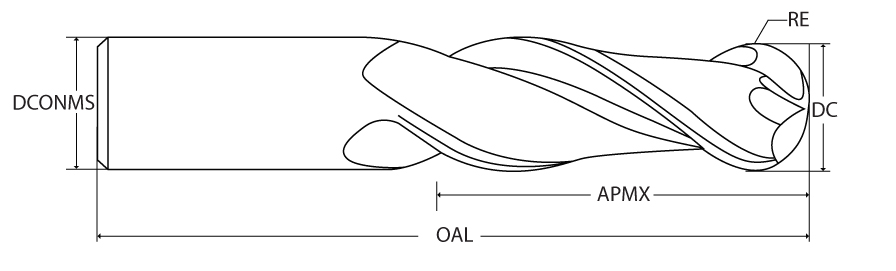

| Cutting Diameter (DC) | 1/2″ | Neck Diameter (DN) | 0.48″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Number of Teeth | 2 |
| Depth of Cut Maximum (APMX) | 5/8″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | Ta-C | Shank Standard | h6 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/8″ | Series/List # | H235 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Application | | Finish | HEM | HPM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Corner Radius (RE) | 1/4″ |
Product Features
| Family Description | 2 Flute Ballnose for Finishing, HPM+ Reduced Neck Center cutting, 35° helix angle, High Performance For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
