5/16X5/16X3/4X2 1/2 3FL

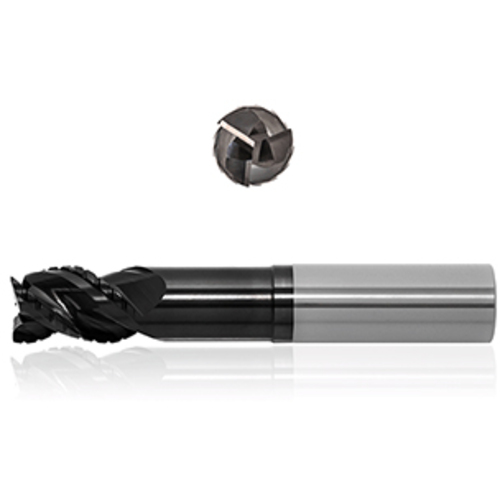

BN End Mill; 5/16″ Dia. × 3/4″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; Ta-C ; Series 363

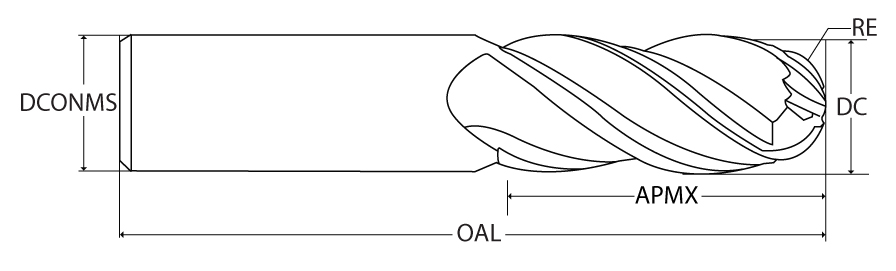

| Cutting Diameter (DC) | 5/16″ | Corner Radius (RE) | 0.1563″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Number of Teeth | 3 |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | Ta-C | Shank Standard | h6 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.3125″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 3/4″ | Series/List # | 363 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Application | | HEM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
Product Features
| Family Description | 3 Flute Ballnose for Roughing, Variable Pitch Chipbreaker Center cutting, 45° helix angle For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
