1X1X1 1/2X4 3FL RH CARB

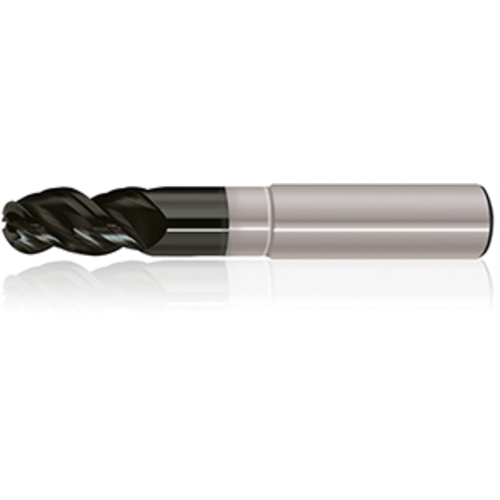

BN End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 3 FL ; Series 360

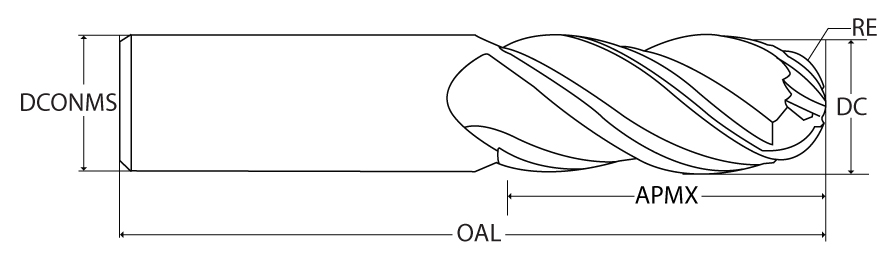

| Cutting Diameter (DC) | 1″ | Number of Teeth | 3 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Grade | H5005 Exxtral Carbon (DLC) |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | End Shape | Ballnose |
| Flute Count (NOF) | 3 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 1″ |
| Usable Length (LU) | 1-1/2″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 360 |
| Application | | Finish | HEM | Profiling | Roughing | Semi Finish | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.015 ″/tooth |
| Corner Radius (RE) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.005 ″/tooth |
Product Features
| Family Description | 3 Flute Ballnose for Finishing, Variable Pitch, Center cutting, 45° helix angle For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
