3/8X3/8X3/4X1_1/4X3___3FL

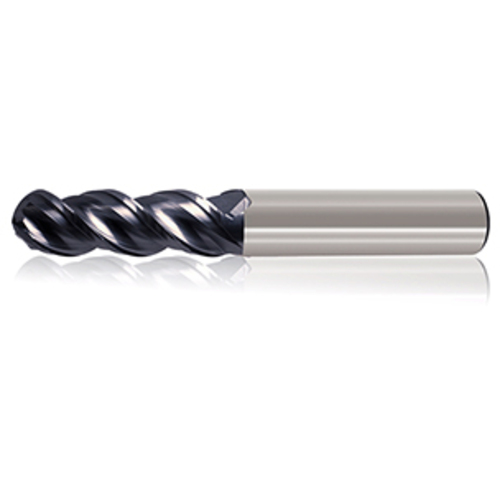

BN End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 3 FL ; Series 345

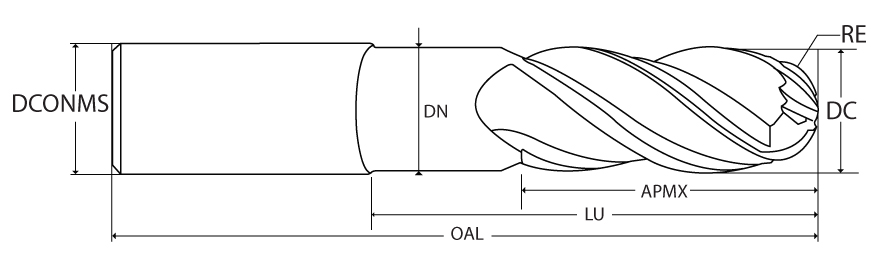

| Cutting Diameter (DC) | 3/8″ | Number of Teeth | 3 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Grade | H5005 Exxtral Carbon (DLC) |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ | End Shape | Ballnose |
| Flute Count (NOF) | 3 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.375″ |
| Usable Length (LU) | 1-1/4″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 345 |
| Application | | Finish | HEM | Profiling | Semi Finish | | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Corner Radius (RE) | 3/16″ | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Neck Diameter (DN) | 0.36″ |
Product Features
| Family Description | 3 Flute Ballnose for Finishing, High Performance, Center cutting, 45° helix angle, Reduced Neck. For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
