5/8X5/8X1 1/2X6 2FL BALL

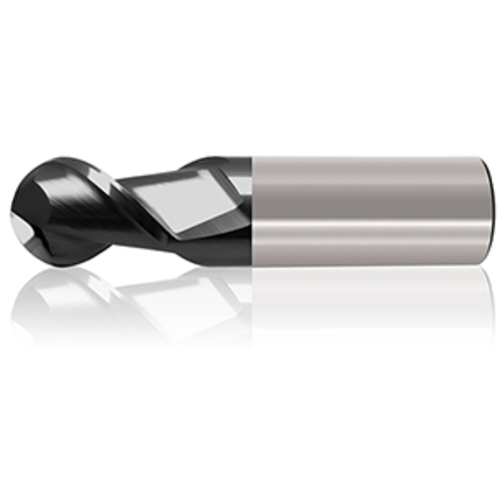

BN End Mill; 5/8″ Dia. × 1-1/2″ LOC × 5/8″ Shank Dia. × 6″ OAL ; 2 FL ; Carbide ; Ta-C ; Series 224

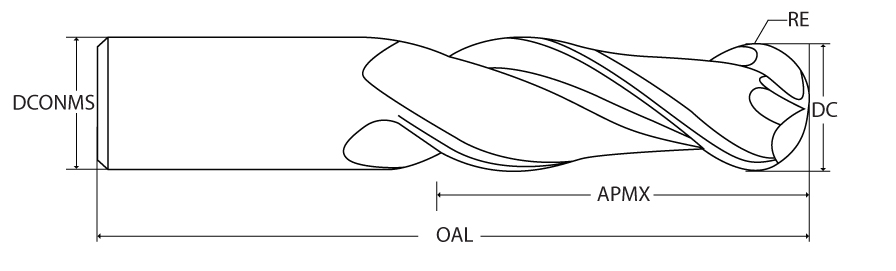

| Cutting Diameter (DC) | 5/8″ | Corner Radius (RE) | 5/16″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Number of Teeth | 2 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | Ta-C | Shank Standard | h6 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1-1/2″ | Series/List # | 224 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
Product Features
| Family Description | 2 Flute Ballnose for Finishing, High Performance, Center cutting, 45° helix angle. For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
