1/2X1/2X7/8X2_1/8X4 4FL
BN End Mill; 1/2″ Dia. × 7/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; VARIANTIC ; Series 451

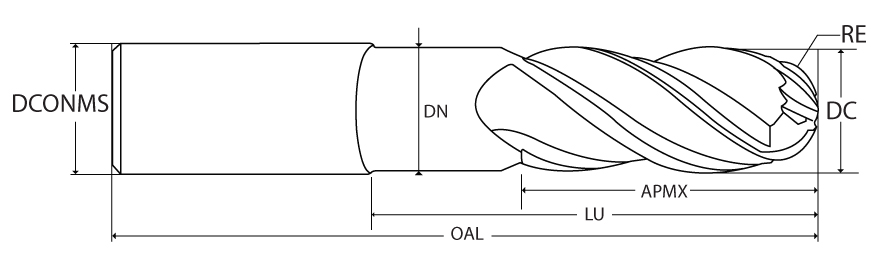

| Cutting Diameter (DC) | 1/2″ | Neck Diameter (DN) | 0.48″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Number of Teeth | 4 |
| Depth of Cut Maximum (APMX) | 7/8″ | Grade | H5003 Varianta Supral |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/8″ | Series/List # | 451 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Application | | Finish | HEM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Corner Radius (RE) | 1/4″ |
Product Features
| Family Description | 4 Flute Ballnose for Finishing. variable Pitch (Center cutting, 38° helix angle, Reduced Neck For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.485
