3/8 × 3/8 × 1-1/2 × 4-4F
BN End Mill; 3/8″ Dia. × 1-1/2″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; VARIANTIC ; Series 451

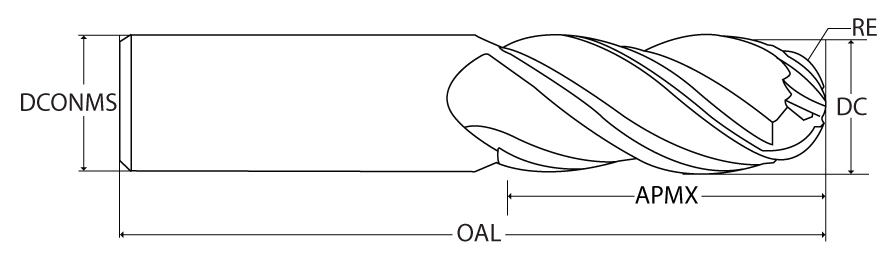

| Cutting Diameter (DC) | 3/8″ | Corner Radius (RE) | 3/16″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Number of Teeth | 4 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | H5003 Varianta Supral |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.375″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1-1/2″ | Series/List # | 451 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Application | | Finish | HEM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.0008 ″/tooth |
Product Features
| Family Description | 4 Flute Ballnose for Finishing. variable Pitch Center cutting, 38° helix angle For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.15
