.125-Ti7T41622505

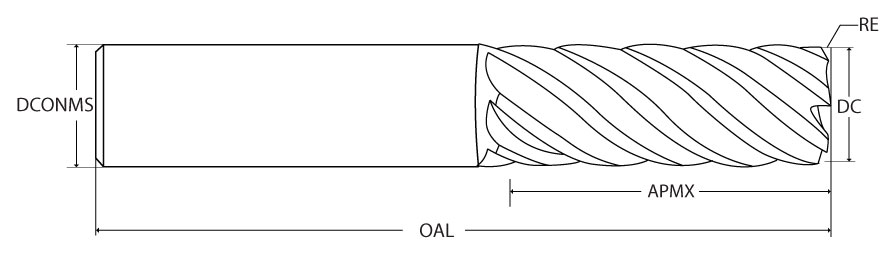

| Connection Diameter Machine Side (DCONMS) | 1″ | Applicable Material | | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Overall Length (OAL) | 5″ | Corner Radius (RE) | 1/8″ |
| Cutting Edge Material | Carbide | Grade | X6004 Cut-Tron Coated |
| Flute Count (NOF) | 7 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Series/List # | Ti7 |
| Usable Length (LU) | 2-1/4″ |
Product Features
| Family Description | 7 Flute Endmill for Finishing, Variable Pitch, Center Cutting, 40° Helix Angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
2.56
