.090-0777T320200045

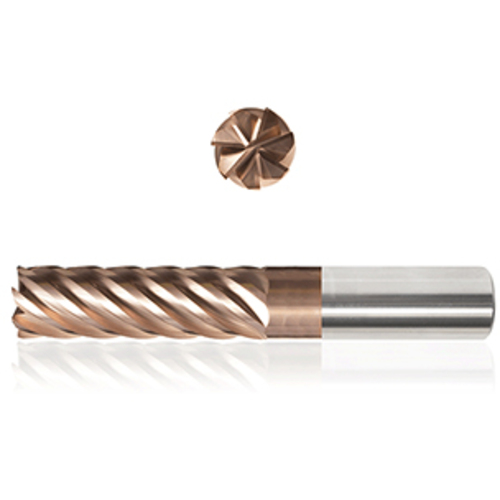

SQ End Mill; 1-1/4″ Dia. × 2″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 0.09″ RE ; 7 FL ; 2″ LBS ; Carbide ; VARIANTIC ; Series 777

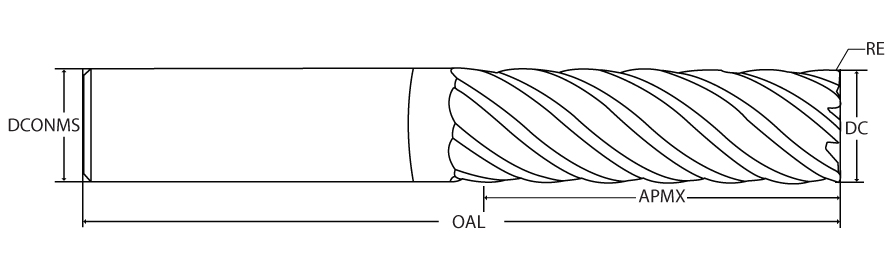

| Cutting Diameter (DC) | 1-1/4″ | Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Depth of Cut Maximum (APMX) | 2″ | Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 4-1/2″ | Grade | H5003 Vulcan |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 7 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 1.25″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Series/List # | 777 |
| Usable Length (LU) | 2″ |
Product Features
| Family Description | 7 Flute Finishing Endmill, Variable Pitch, Center Cutting, 40° Helix, High Efficiency Milling. For Tool Steels,Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
3.601
