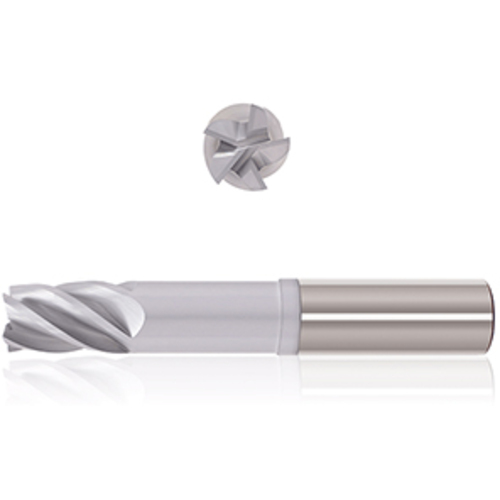

SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 7″ OAL ; 5 FL ; Carbide ; AITiCrN ; Series 558
SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 7″ OAL ; 3/16″ RE ; 5 FL ; 5″ LBS ; Carbide ; AITiCrN ; Series 558

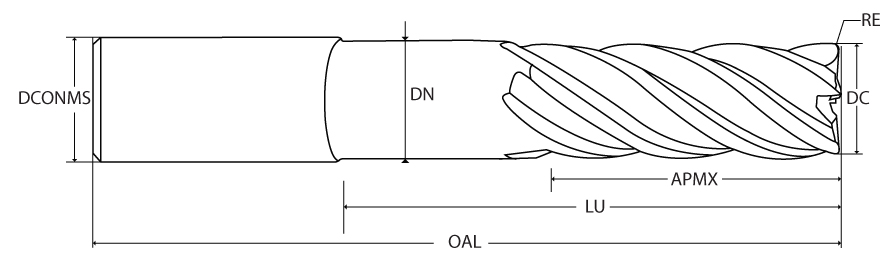

| Cutting Diameter (DC) | 1″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 3/16″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | H5008 Exxtral Silver |
| Overall Length (OAL) | 7″ | Neck Diameter (DN) | 0.97″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | AITiCrN | Maximum Feed per Tooth (fz(max)) | 0.014 ″/tooth |
| Flute Count (NOF) | 5 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 35 Degrees | Shank Standard | h6 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 1″ |
| Usable Length (LU) | 5″ | Measurement Type | Inch |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Series/List # | 558 |
Product Features
| Family Description | 5 Flute End Mill for Finishing, Variable Pitch, Reduced NeckCenter Cutting, 35° Helix Angle, Traditional Milling For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
