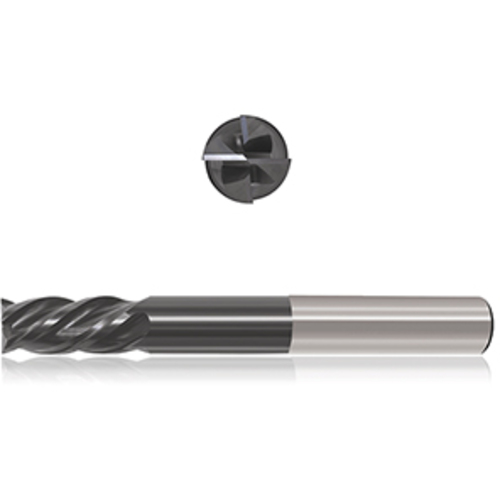

SQ End Mill; 1/2″ Dia. × 7/8″ LOC × 1/2″ Shank Dia. × 5″ OAL ; 4 FL ; Carbide ; TiAICN ; Series 452
SQ End Mill; 1/2″ Dia. × 7/8″ LOC × 1/2″ Shank Dia. × 5″ OAL ; 0.09″ RE ; 4 FL ; 3-1/8″ LBS ; Carbide ; TiAICN ; Series 452

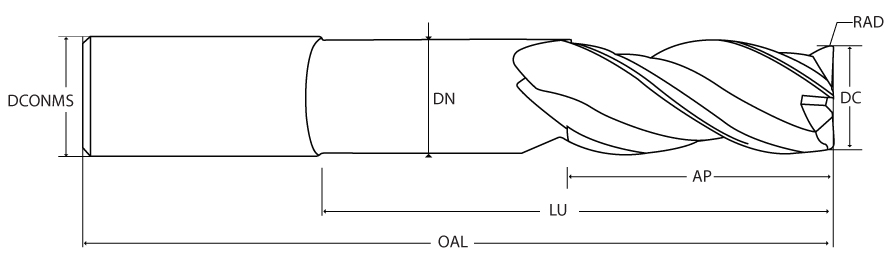

| Cutting Diameter (DC) | 1/2″ | Application | | Finish | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.09″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Grade | H5009 Varianta Supral |
| Overall Length (OAL) | 5″ | Neck Diameter (DN) | 0.48″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | TiAICN | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Shank Standard | h6 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 3-1/8″ | Measurement Type | Inch |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Series/List # | 452 |
Product Features
| Family Description | 4 Flute End Mill for Finishing. variable Pitch Center Cutting, 38° Helix, Reduced Neck, Eccentric OD For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.606
