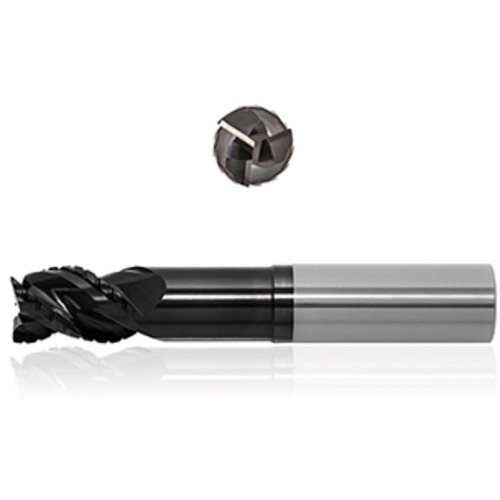

SQ End Mill; 5/8″ Dia. × 1″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Ta-C ; Series 363
SQ End Mill; 5/8″ Dia. × 1″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 1/8″ RE ; 3 FL ; 2″ LBS ; Carbide ; Ta-C ; Series 363

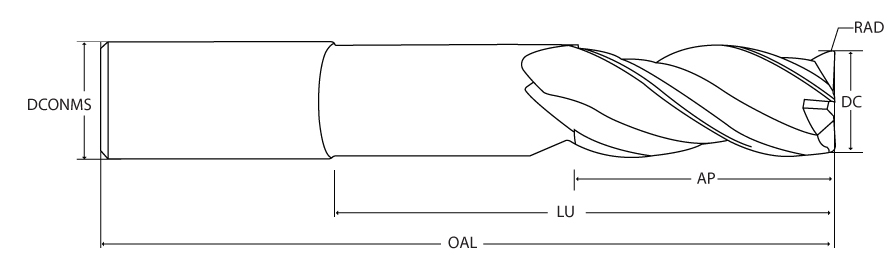

| Cutting Diameter (DC) | 5/8″ | Application | | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 4″ | Neck Diameter (DN) | 0.6″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | Ta-C | Maximum Feed per Tooth (fz(max)) | 0.006 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Shank Standard | h6 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.625″ |
| Usable Length (LU) | 2″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 363 |
Product Features
| Family Description | 3 Flute End Mill for Roughing, Variable Pitch Chipbreaker Center cutting, 45° helix angle, Reduced Neck For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
