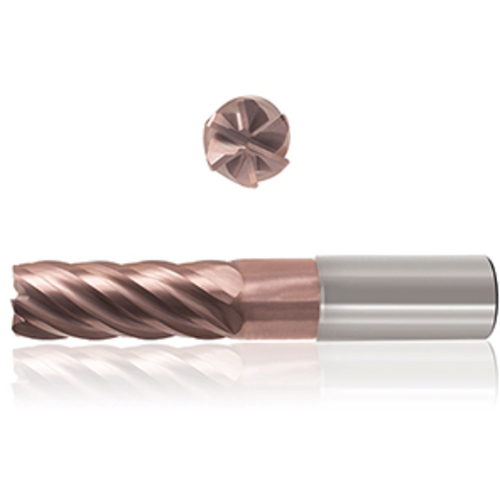

SQ End Mill; 3/4″ Dia. × 1-1/4″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 6 FL ; Carbide ; VARIANTIC ; Series 677
SQ End Mill; 3/4″ Dia. × 1-1/4″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 6 FL ; 2″ LBS ; Carbide ; VARIANTIC ; Series 677

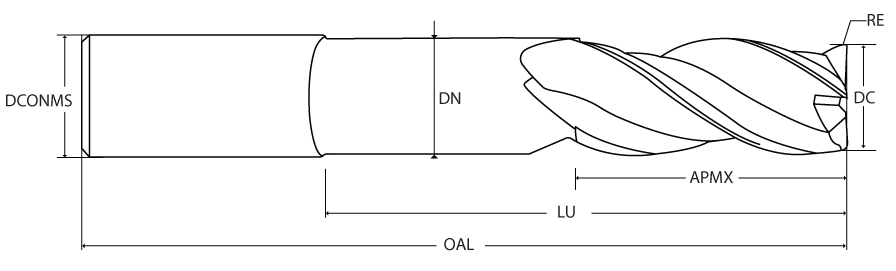

| Cutting Diameter (DC) | 3/4″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Grade | H5003 Vulcan |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Neck Diameter (DN) | 0.725″ |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Coating | VARIANTIC | Minimum Feed per Tooth (fz(min)) | 0.0018 ″/tooth |
| Flute Count (NOF) | 6 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.75″ |
| End Shape | Square | Measurement Type | Inch |
| Usable Length (LU) | 2″ | Series/List # | 677 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | 6 Flute Endmill for Finishing, Variable Pitch, Reduced Neck,Center Cutting, 38° Helix, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
