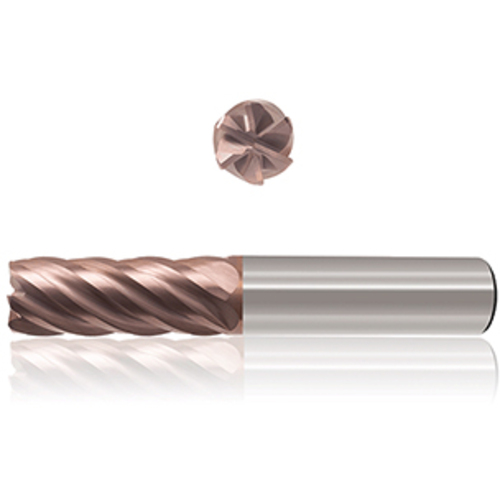

3/8X3/8X1 1/2X4_6FL RH
SQ End Mill; 3/8″ Dia. × 1-1/2″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 0.015″ RE ; 6 FL ; 1-1/2″ LBS ; Carbide ; VARIANTIC ; Series 677

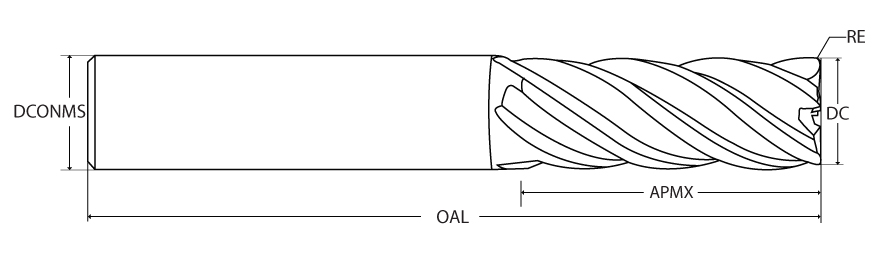

| Cutting Diameter (DC) | 3/8″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | H5003 Vulcan |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0019 ″/tooth |
| Coating | VARIANTIC | Minimum Feed per Tooth (fz(min)) | 0.0005 ″/tooth |
| Flute Count (NOF) | 6 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.375″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1-1/2″ | Series/List # | 677 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | 6 Flute Endmill for Finishing, Variable Pitch, Center Cutting, 38° Helix, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.288
