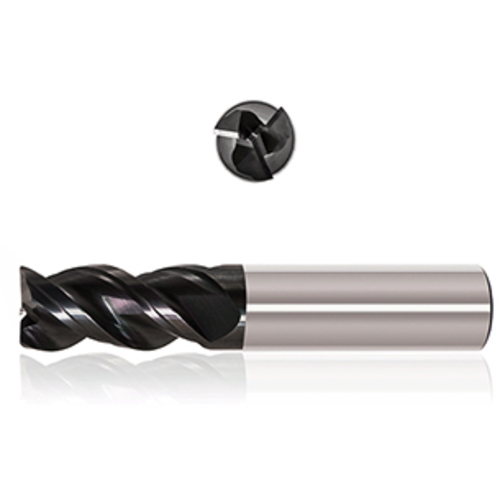

SQ End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 3 FL ; Series 360
SQ End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 0.03″ RE ; 3 FL ; 1/2″ LBS ; Series 360

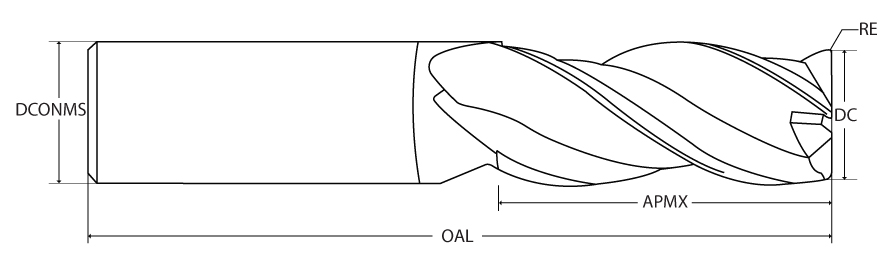

| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | H5005 Exxtral Carbon (DLC) |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2″ | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Shank Standard | h6 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.25″ |
| Usable Length (LU) | 1/2″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 360 |
| Application | | Finish | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
Product Features
| Family Description | 3 Flute End Mill for Finishing, Variable Pitch, Center cutting, 45° helix angle For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
