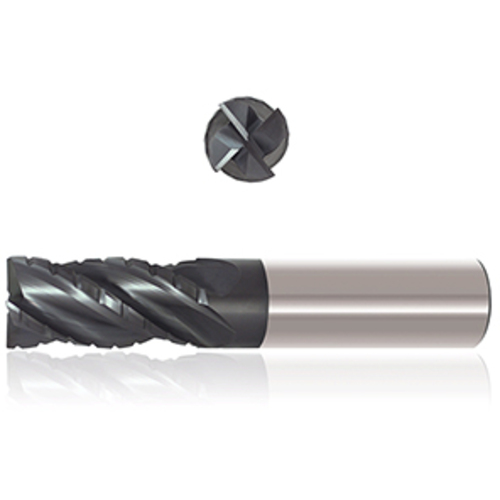

SQ End Mill; 5/16″ Dia. × 1-5/8″ LOC × 5/16″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; TiAICN ; Series 453
SQ End Mill; 5/16″ Dia. × 1-5/8″ LOC × 5/16″ Shank Dia. × 4″ OAL ; 0.015″ RE ; 4 FL ; 1-5/8″ LBS ; Carbide ; TiAICN ; Series 453

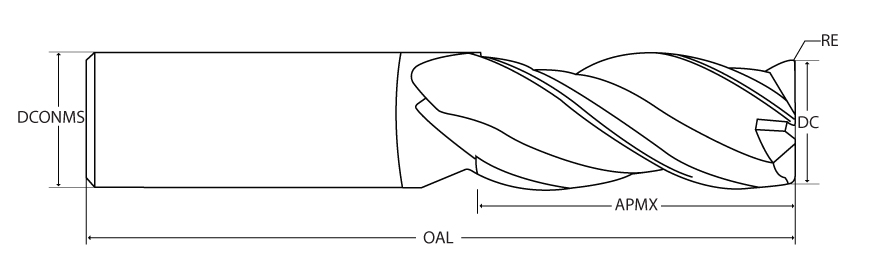

| Cutting Diameter (DC) | 5/16″ | Application | | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Grade | H5009 Varianta Supral |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
| Coating | TiAICN | Minimum Feed per Tooth (fz(min)) | 0.0006 ″/tooth |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.3125″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1-5/8″ | Series/List # | 453 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | |
Product Features
| Family Description | 4 Flute End Mill for Roughing, Variable Pitch w ChipbreakersCenter Cutting, 38° Helix For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
