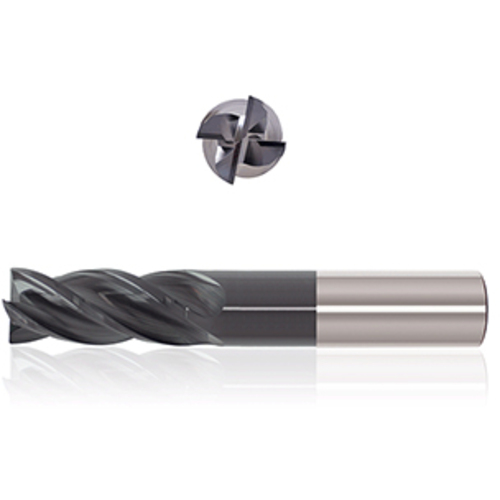

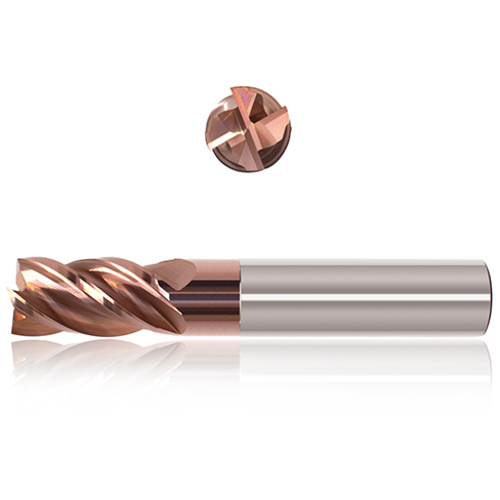

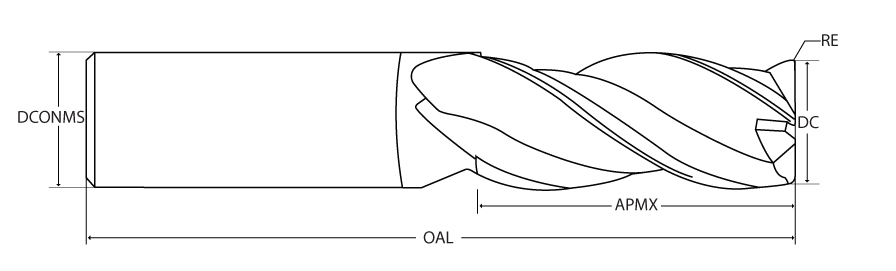

SQ End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; VARIANTIC ; Series 451
SQ End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; 2-1/8″ LBS ; Carbide ; VARIANTIC ; Series 451
| Cutting Diameter (DC) | 3/8″ | Application | | Finish | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Grade | H5003 Varianta Supral |
| Depth of Cut Maximum (APMX) | 3/4″ | Neck Diameter (DN) | 0.36″ |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Coating | VARIANTIC | Minimum Feed per Tooth (fz(min)) | 0.0008 ″/tooth |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.375″ |
| End Shape | Square | Measurement Type | Inch |
| Usable Length (LU) | 2-1/8″ | Series/List # | 451 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | |
Product Features
| Family Description | 4 Flute End Mill for Finishing, Variable Pitch Center Cutting, 38° Helix, Reduced Neck For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.272
