5/8X1-1/4 LOC 4FL VARI

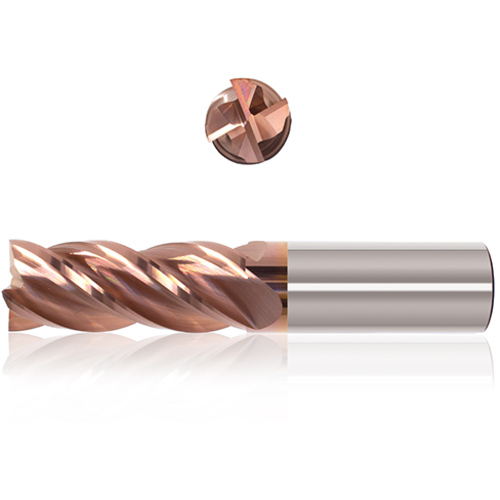

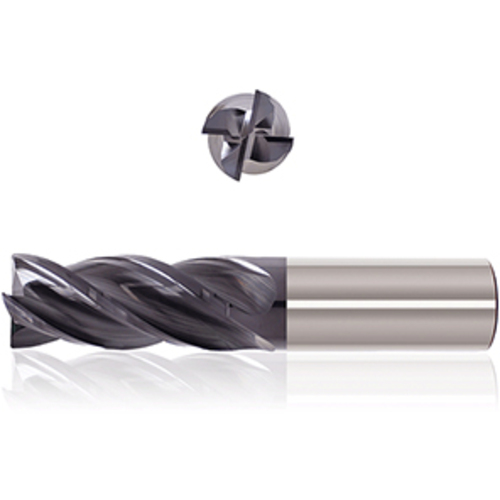

SQ End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 0.06″ RE ; 4 FL ; 1-1/4″ LBS ; Carbide ; VARIANTIC ; Series 451

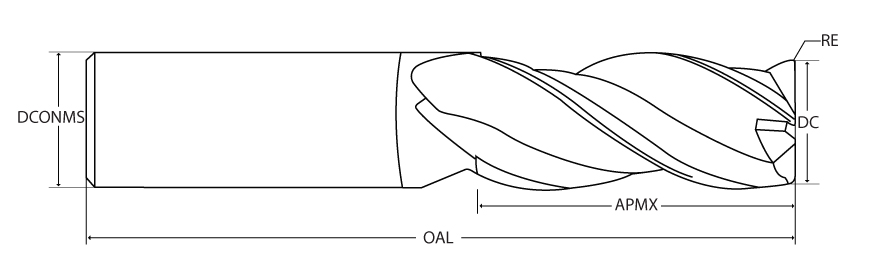

| Cutting Diameter (DC) | 5/8″ | Application | | Finish | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Grade | H5003 Varianta Supral |
| Overall Length (OAL) | 3-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Coating | VARIANTIC | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.625″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1-1/4″ | Series/List # | 451 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | |
Product Features
| Family Description | 4 Flute End Mill for Finishing, Variable Pitch Center cutting, 38° Helix For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.45
