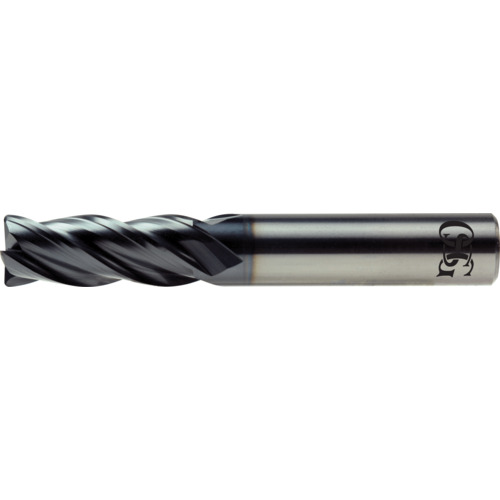

1/4X3/8 4FL VGX 0.016
SQ End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 4″ OAL ; 4 FL ; 3/8″ LBS ; Carbide ; AlTiN ; Series VG436
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 3/8″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Corner Chamfer Width (CHW) | 0.016″ |
| Overall Length (OAL) | 4″ | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Style | Corner Chamfer |
| Coating | AlTiN | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | VG436 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.04
