1/8X1/2 4FL VGX 0.010

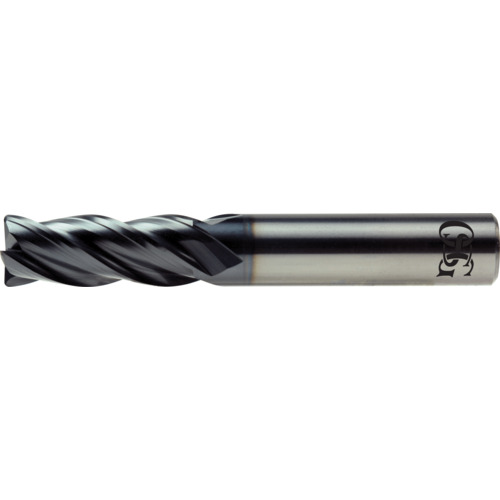

SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series VG436
| Cutting Diameter (DC) | 1/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/2″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Chamfer Width (CHW) | 0.01″ |
| Overall Length (OAL) | 1-1/2″ | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Style | Corner Chamfer |
| Coating | AlTiN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | VG436 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.035
