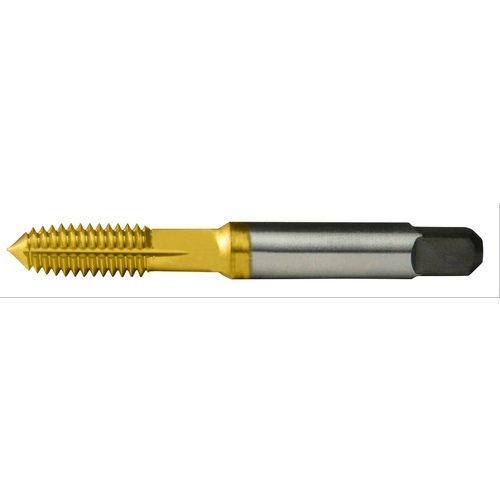

M3x0.5 Flute D5 Bottoming HSS Standard Thread Forming Tap- TiN
Forming Tap; M3 × 0.5 mm ; 49.21 mm OAL × 3.58 mm Shank Dia. ; HSS ; TiN ; D5 | 6H ; Series FTGP-TN
| Tool Type | Machine Tap | Length Group | 2D |
| Thread Diameter Size (TDZ) | M3 | Measurement Type | Metric |
| Thread Pitch (TP) | 0.5 mm | Flute Type | Straight |
| Overall Length (OAL) | 49.21 mm | Style | Bottoming |
| Thread Cutting Part Length (THL) | 7.94 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm | Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | D5 | 6H | Cutting Direction (HAND) | Right Hand |
| Application | General Purpose | Series/List # | FTGP-TN |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Shank Type | Round w/ Drive Square |
| Coating | TiN | Thread Size | M3 × 0.5 |
| Chamfer | Bottoming |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.007
