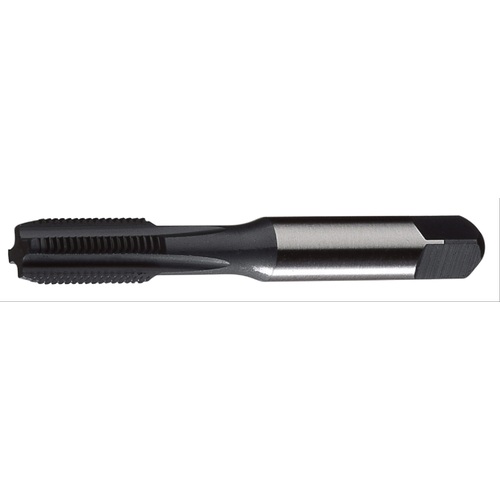

#10-32 UNF 4 Flute H3 Semi-Bottoming HSS-E CNC For Cast Iron & Harder Materials CNC Straight Flute Tap- Steam Oxide over Nitride
Straight Flute Tap; #10 - 32 ; 2-3/8″ OAL ; 4 FL ; HSSE ; Black Oxide ; H3 | 2B ; Series HTHM
| Thread Diameter Size (TDZ) | #10 | Chamfer | Semi-Bottoming |
| Threads per Inch (TPI) | 32 | Coating | Black Oxide |
| Thread Standard | NF | Flute Type | Straight |
| Overall Length (OAL) | 2-3/8″ | End Shape | Square |
| Thread Cutting Part Length (THL) | 1/2″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Application | High Performance | Length Group | 2D |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSE | Series/List # | HTHM |
| Thread Tolerance Class (TCTR) | H3 | 2B | Thread Size | #10 - 32 |
| Tool Type | Machine Tap |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.015
